Intoduction to PLC and Industrial Automation

  Hello guys👋😎, today I am exciting to share with you some useful information’s that certainly help you to beginning in the world of industrial automation, what else if you are a student, technician or engineer, you should have a minimum knowledge about PLC’s.

  PLC or “Programmable Logic Controller” is one of essentials components that has revolutionized the landscape of industrial automation and development. PLC is a digital computing device specifically designed to control, monitor, and automate various processes in industrial applications. It acts as the brain of industrial systems, allowing for precise control, real-time monitoring, and seamless coordination of machinery and processes.

 PLCs were initially developed in the late 1960s to replace traditional relay-based control systems or also known as classic control, which come more complex with big application and complex process that require huge number of electrical components classic control in this case will be more expensive, and less flexible.

The first PLC was created by Dick Morley in 1969, revolutionizing the automation industry. Since then, PLCs have evolved exponentially in terms of capabilities, processing power, and versatility.

So, what is the main components of PLC?

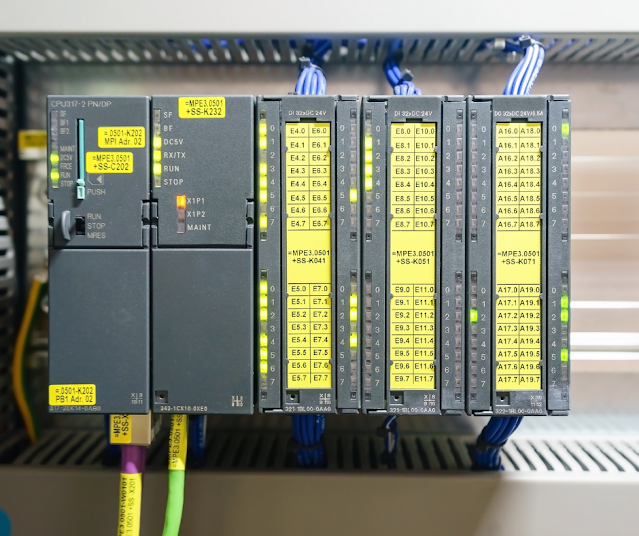

PLC Compenents:

A typical PLC compose of three main components:

•     Power Supply: PLCs require a stable power supply to function correctly. The power supply provides the necessary electrical power to all the components of the PLC, ensuring smooth operation
•      CPU: The central processing unit or the processor, his role to executes programs and processes data from various input devices The central processing unit is the brain of the PLC. It executes the control program and performs various calculations and logical operations based on the inputs received from input modules. The CPU also handles communication between different components of the PLC..
•      Input Modules: These modules are responsible for acquiring data from sensors and other input devices, converting them into digital signals, and sending them to the processor, and there two types of input modules Digital and Analog.
•    Output Modules: These modules receive signals from the processor and activate various output devices, such as motors, solenoids, and valves, to control the industrial process. and there two types of input modules Digital and Analog.
•      Communication Ports: PLCs often come equipped with communication ports in the CPU (Ethernet, serial, USB) that allow them to communicate with other devices, such as computers, Human Machine Interfaces (HMIs), or other PLCs, for data exchange and system integration.

And who it operates?

Opreration principle of PLC:

PLC operates based on a cyclic or scan-based execution process. The primary steps involved in the operation of a PLC are as follows:

• Input Scan: The PLC starts its operation by performing an input scan. during this phase, the PLC reads the state of various input devices connected to the input modules, such as sensors, switches, and other digital or analog devices.
• Program Execution: After completing the input scan, the PLC's central processing unit (CPU) executes the control program stored in its memory. This control program is a sequence of logical instructions written by the programmer using ladder logic, function block diagrams, or other programming languages.
• Logical Processing: The CPU processes the control program based on the input values obtained during the input scan, logical operations, such as AND, OR, NOT, timers, counters, and comparison functions, are used to determine the appropriate output states based on the current inputs and the logic defined in the program.
• Output Scan: in this phase, the CPU sends output commands to the output modules based on the results of the logical processing, the output modules actuate various devices, such as motors, solenoids, valves, and indicators, to control the industrial process according to the programmed logic.
• Update Output Devices: the output devices are updated to their new states based on the output commands from the PLC,this step completes the control action affecting the connected industrial system

Advantages of PLC in Industrial Automation:

According to his simple architecture PLC offers many advantages in the industrial process such as:

•       Flexibility: PLCs allow for easy modification and reprogramming of control logic without            significant hardware changes, enabling rapid adaptability to changing production requirements.

•    Reliability: PLCs are known for their robustness and reliability, ensuring continuous operation    in harsh industrial environments.

•       Diagnostics and Monitoring: PLCs facilitate real-time monitoring, diagnostics, and error           reporting, which aids in predictive maintenance and reduces downtime.

•        Increased Productivity: Automation through PLCs improves efficiency, reduces human error,       and enhances overall productivity.

These advantages allow PLC to be used in a wide range of industrial application like:

•        Manufacturing: Automating assembly lines, robotics, and quality control processes.
•        Energy: Monitoring and controlling power generation and distribution systems.
•      Transportation: Managing traffic control systems, railway signaling, and airport baggage handling.
•    Water Treatment: Controlling purification, pumping, and distribution processes.

Conclusion:

 In conclusion, Programmable Logic Controllers, have played a pivotal role in the development of various industries, bringing automation, efficiency, and reliability to the forefront of industrial processes. Their evolution from classic control system to sophisticated digital controllers has transformed the industrial landscape, driving progress and innovation. As technology continues to evolve, PLCs will remain at the heart of modern industrial automation, propelling us towards a more connected, efficient, and sustainable future.

 In order to get a better understanding about PLC their components and how it operates I will give you an incredible guide lines that introduce to PLC and industrial automation with professional, simple and amazing way
