 Hello guys 👋👋 welcome back again to STM32 programming tutorial, in today blog we will present our hardware setup which we will working with it during all the upcoming tutorials, the used board is STM32F407ZET6 development board which is an excellent choice. With its powerful features, robust architecture and numerous peripherals, it offers to developers a complete platform for creating and experimenting with complex embedded applications. We will introduce the board, its core processor and features, and prepares you to begin a comprehensive series of tutorials on STM32 programming

1. Overview of the STM32F407ZET6 microcontroller

The STM32F407ZET6 belongs to STMicroelectronics' STM32F4 series, known for its high-performance 32-bit ARMCortex-M4 cores. Here are some of its key specifications:

The STM32 series of microcontrollers is one of the most popular ones among the 32-Bit microcontrollers. STMicroelectronics provides multiple of product lines for the STM32 parts. There is a low-power, mainstream, and high-performance product lines. and a more application-specific wide variety of parts that enables you to pick the right part for your project.

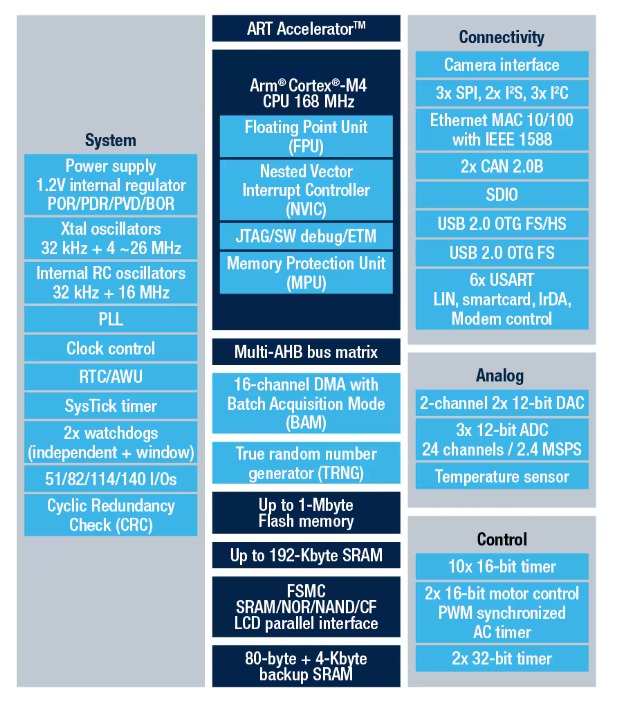

The STM32F407ZET6 is presented by the following circuit diagram :

• Core: ARM Cortex-M4 with FPU (floating point unit).
• Clock speed: Up to 168 MHz, enabling higher processing speeds for demanding applications.
• Flash memory: 512 KB.
• RAM: 192 KB, divided into several banks for versatile memory management.
• Package: LQFP144 (144-pin), offering a wide range of I/O and peripheral options.
• Operating voltage: 1.8 to 3.6 V.

The STM32F4 series is optimised for applications requiring real-time performance, such as motor control, industrial automation and digital signal processing (DSP), thanks to its FPU.

Main Features of STM32F407ZET6 Development board

the STM32F407ZET6 development board host several hardware (external and internal features) on which we will spot light but before let's take look first to the development board shown in the picture below :

 1.Memory:

The STM32F407ZET6 includes a variety of memory options that support different aspects of embedded application development:

• Flash Memory: 512 KB of built-in flash memory to store code and data.
• SRAM: 192 KB of SRAM split across several banks, which can be advantageous for efficient memory management in applications requiring multiple data streams or buffer usage
•  Adaptive Real-Time (ART) Accelerator:is a feature in the ARM Cortex-M4 microcontrollers, specifically implemented in STMicroelectronics’ STM32F4 series (including the STM32F407ZET6). The ART Accelerator is designed to optimize the way the Cortex-M4 processor accesses flash memory, significantly improving instruction fetch efficiency and overall performance.

2.Memory protection unit (MPU):

The memory protection unit (MPU) is used to manage the CPU accesses to memory to prevent one task to accidentally corrupt the memory or resources used by any other active task. This memory area is organized into up to 8 protected areas that can in turn be divided up into 8 subareas.

 3.I/O Ports:

STM32F407ZET6 have 144 pins With 7 ports (PA to PG) orgnized with the following devision :

• PA0-PA15
• PB0-PB15
• PC0-PC13 (PC14 OSC32_IN and PC15 OSC32_OUT for oscillator)
• PD0-PD15
• PE0-PE15
• PF0-PF15
• PG0-PG15

 General-purpose I/O (GPIO) ports  can be used to control several components and diveces from led , relays to drivers which offers to the programmer a wide space of freedom to configure and boost the features of the developped system with:

 Analog and Digital I/O: Provides both digital GPIO and multiple analog input pins, allowing flexible interfacing with various components.

Pin Configuration: each GPIO pin can be configured as input, output, alternate function, or analog mode, providing a high degree of customization.

Interrupt Capabilities: Each GPIO pin can trigger interrupts, which is useful for real-time response to external events.

4.Peripherals:

TFT (J6): TFT (Thin-Film Transistor) display. This connector allows you to connect a TFT LCD screen to the development board, enabling the display of graphics, text, or real-time data generated by the microcontroller.

USART/UART: Six USART interfaces support standard serial communication for interfacing with various devices and modules.
I2C: Three I2C interfaces for connecting to sensors, displays, and other I2C-compatible peripherals.
SPI: Four SPI interfaces support high-speed data transfers with external components, such as displays, SD cards, or sensors.
CAN: Two CAN (Controller Area Network) interfaces provide robust communication options, particularly for automotive and industrial applications
USB OTG: USB On-The-Go (OTG) capability enables the board to act as a USB host or device, allowing for USB communication with other devices

Micro SD Port : to interface with an exteranl memory and upgrade memory capacity

User Button (K0): connected to PE4 KEY0, active low

User Button (K1): connected PE3 KEY1, active low

User Button (WK_UP): PA0 WK_UP, active high
User LED (D1): PF9 LED0
User LED (D2): PF10 LED1

Battery (Q1):

1. BAT54C
2. 3V3
3. GND VBAT

5.Timers and PWM Generation:

The STM32F407ZET6 is equipped with 14 timers that can be used for timing applications, PWM (Pulse Width Modulation) generation, and event counting:

• General Purpose Timers: Used for delay generation, event counting, and capturing input events.
• Advanced Timers: Provide PWM outputs that can be used to control motors, LEDs, and other devices requiring precise pulse control.
• Basic Timers: These can be used as simple counters or for time-based triggering.

6.Analog Peripherals:

For applications requiring signal acquisition and analog processing, the STM32F407ZET6 provides both ADCs and DACs:

• Analog-to-Digital Converters (ADCs): Three 12-bit ADCs with up to 24 input channels are useful for capturing data from analog sensors.
• Digital-to-Analog Converters (DACs): Two 12-bit DACs provide analog output, which can be used to generate waveforms or control external components like audio circuits.

 7.Real-Time Clock (RTC):

An RTC is included for time-keeping, even when the board is in low-power mode. It is particularly useful for applications that require precise time-stamping, such as data logging or scheduling.

 Programming of the STM32F407ZET6:

To program the STM32F407ZET6, we will use STM32CubeIDE, a free development environment by STMicroelectronics that integrates MCU setup (include the STM32 cube MX),code editing, compiling, and debugging for STM32 microcontrollers.

1. Download STM32CubeIDE: You can download STM32CubeIDE from the STMicroelectronics website given in this link Download
2. Install STM32CubeIDE: Follow the installation instructions for your operating system.
3. Install Required Drivers: Ensure you have the ST-Link drivers installed, as they are necessary for programming and debugging via the ST-Link interface.

the ST-link debugger which we will use in the upcoming tutorials is shown below

In Summary STM32 arm cortex-m4 is a highly sophesticated architecture used in the development of real RTOS system and high effecincy application, in today blog we have make a quick intro to the development board which we will use in the rest of the tutorials , in the next tutorial we will dive into installation , setup and launch of our first STM32 code with small interface with GPIO and it we will be with a practical example so stay connected ,don't miss our newest and share the content with your friends bye 👋👋😎

STM32F407ZET6 Development Board Schematics
